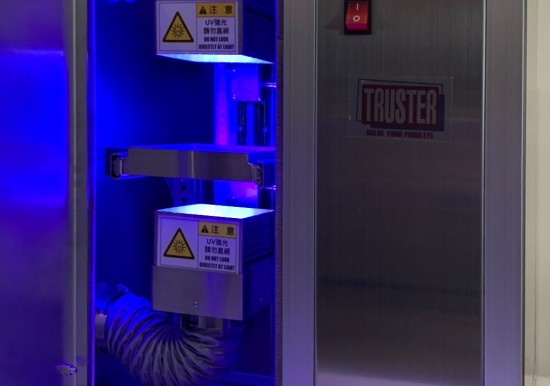

TSS 1010 UV LED Curing Box
▲UV wavelength：365 nm ，385 nm, 405 nm
▲Active Area：100 mm * 100 mm
▲Application：R&D & samll batch production required double-sided curing
▲Feature：Adopt High quality UV LED
▲Dual side UV LED module
▲Adjustable gap distance between light source and the substrate
Contact
▲Active Area：100 mm * 100 mm
▲Application：R&D & samll batch production required double-sided curing
▲Feature：Adopt High quality UV LED
▲Dual side UV LED module
▲Adjustable gap distance between light source and the substrate
specification
▲UV wavelength : 365nm / 385nm / 405nm / multiple wavelength design
▲Uniformity >85%
▲Fan ventilation cooling
▲Input voltage : 110~220 VAC
▲Easy for extension
▲Control unit：Analog control, PLC, HMI with touch screen
▲Optional: Conveyor system
▲Override : 10%~100%
▲Uniformity >85%
▲Fan ventilation cooling
▲Input voltage : 110~220 VAC
▲Easy for extension
▲Control unit：Analog control, PLC, HMI with touch screen
▲Optional: Conveyor system
▲Override : 10%~100%
| Model | Working Area | Effective Lux |
| TS 1010 | 100mm x 300mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 4010 | 400mm x 100mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 1515 | 150mm x 150mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 2015 | 200mm x 150mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 2020 | 200mm x 200mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 2515 | 250mm x 150mm | N: >600mW/cm2 H: >900mW/cm2 |
| TS 3020 | 300mm x 200mm | N: >600mW/cm2 H: >900mW/cm2 |
| ♦ Control unit：Analog control, PLC, HMI with touch screen ♦ Optional: Conveyor system ♦ Override : 10%~100% |
||
