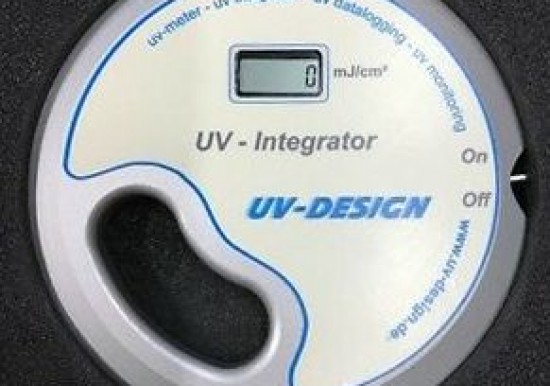

UV-Integrator 140能量計

The UV-Integrator 140 radiometer is a high quality UV measuring instrument designed for the measurement of different UV lamps, especially those of printing machines.
Ideal for achieving reliable quality controls in printing and drying processes.
Thanks to its size (140 mm diameter) and its new ergonomic notch that facilitates its handling, it is perfect for use in drying tunnels.

Applications:
Printing and drying process

產品詢問

產品規格

量測項目: mJ/cm2
Type 1, Diazo 350 – 460 nm
Type 2, UV-A 315 – 400 nm
Type 3, UV 250 – 410 nm
Type 4, UV-B 280 – 315 nm
Type 5, UV-C 230 – 280 nm
Type 6, UV-V 395 – 445 nm

Spectral range: UV 250 – 410 nm
Measuring range: 0 to 5,000 mW/cm2
Display: 6-digit LCD
Display range: 0 to 999,999 mJ/cm2
Power source: long life 3.6 V Lithium Battery
Power consumption: 100 μA
Battery service life: 10,000 hrs
Dimensions: φ 5.5” (140 mm)
height ½” (13 mm)
Weight: approx. 16 ounce (450 grs.)
Temperature range: 0 to 45° Celsius
Heat protection: Heat shield on back plate
Base Accuracy: ± 5 %
