UV LED Curing Module

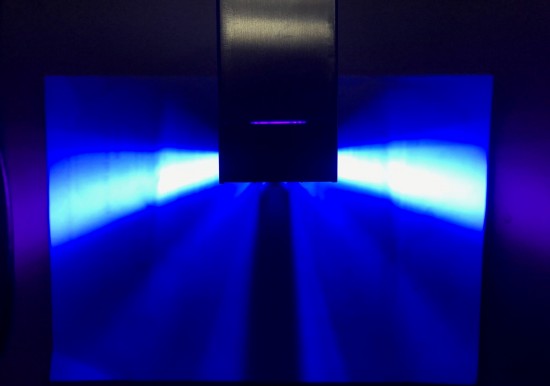

  • 測發光

TL160 UV LED Linear Module

♦ Effective lengthe:160mm
♦ Adjustable angle:Curing from bottom or Dual side curing
♦ Applied area: Curing process for various kind of area such as semiconductor, optronics, solar cell.
Contact

specification

►Optional wavelength: 【365nm】【385nm】【395nm】
  •  ♦ 365nm > 3000mW/cm2
  •  ♦ 385nm > 3000mW/cm2
  •  ♦ 395nm > 4500mW/cm2

           Model                    Effective Area
TL 160 160mm x 10mm
TL 250 250mm x 10mm
TL 500 500mm x 10mm
TL 1000 1000mm x 10mm
TL 1760 1760mm x 10mm
 ♦ Control unit:Analog control, PLC, HMI with touch screen
 ♦ Optional: Conveyor system
 ♦ Standard distance:10mm ,Customized design : Up to 50mm (>90%)
